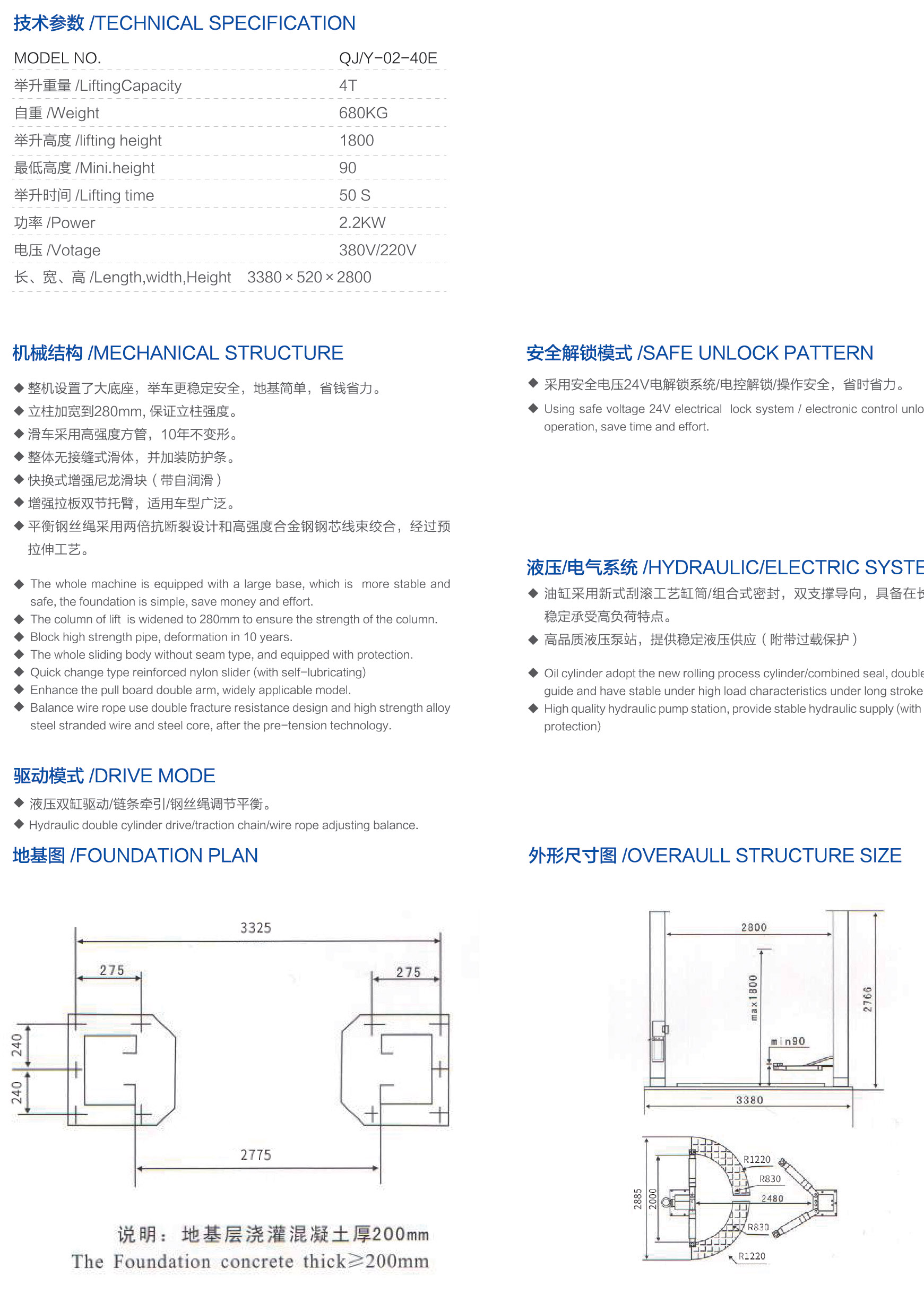

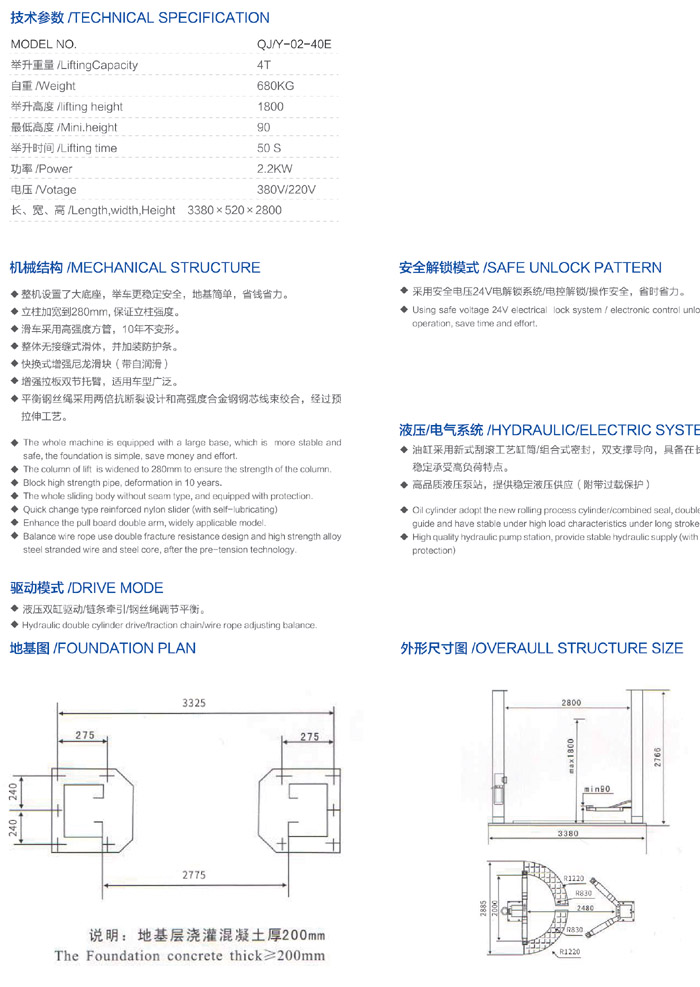

features:
mechanical structure :
1.The column of lift is widened to 280mm to ensure the strength of the column.
2.Block high strength pipe, deformation in 10 years.
3.The whole sliding body without seam , and equipped with protection.
4.Quick change type reinforced nylon slider(with self-lubricating)
5.Enhanced drawing board double arm, widely applicable model.
6.Balance wire rope use double fracture resistance design and high strength alloy steel stranded wire and steel core, after the pre-tension technology.
Drive mode
Hydraulic double cylinder drive/traction chain/wire rope adjusting balance.
safe unlock pattern
Using safe voltage 24V electrical lock system / electronic control unlock / safe operation, save time and effort.
hydraulic/electric system
1.Oil cylinder adopt the new rolling process cylinder / combined seal, double support guide and have stable under high load characteristics under long stroke.

2.High quality hydraulic pump station, provide stable hydraulic supply (with overload protection)

3, Set maximum lifting position limit switch.
