Small scissors lifting machine

2018-11-14 16:24:22 Viewers:
  • Brand
  • TypeQJ/Y-J-30C
  • Require
Introduction

Small scissors lifting machine

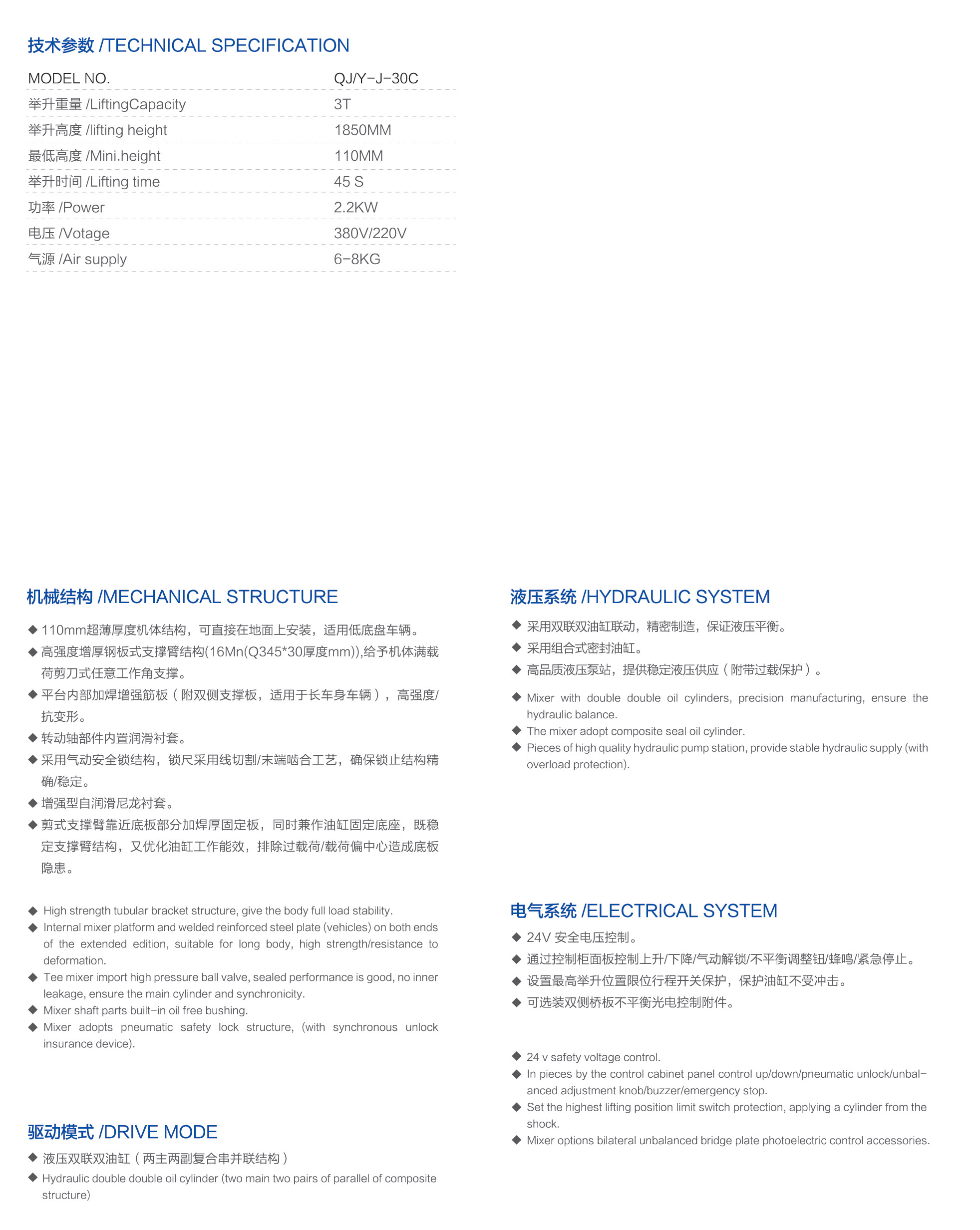

Features:
mechanical structure

1.High strength tubular bracket structure, give the body full load stability.
2.Internal mixer platform and welded reinforced steel plate (vehicles) on both ends of the extended edition, suitable for long body, high strength/resistance to deformation.
3.Tee mixer import high pressure ball valve, sealed performance is good,no inner leakage, ensure the main cylinder and synchronicity.
4.Mixer shaft parts built-in oil free bushing.
5.Mixer adopts pneumatic safety lock structure,(with synchronous unlock insurance device).
Drive mode:
Hydraulic double double oil cylinder (two main two pairs of parallel of composite structure)
hydraulic  system
1.Maixer with double double oil cylinders, precision manufacturing, ensure the hydraulic balance..
2.The mixer adopt composite seal oil cylinder.
3.Pieces of high quality hydraulic pump station, provide stable hydraulic supply (with overload protection).
Electrical system
1.24v safety voltage control.
2.In pieces by the control cabinet panel control up/down/pneumatic unlock/unbalanced adjustment knob/buzzer/emergency stop.
3.Set the highest lifting position limit switch protection, applying a cylinder from the shock
4.Mixer options bilateral unbalanced bridge plate photoelectric control accessories
