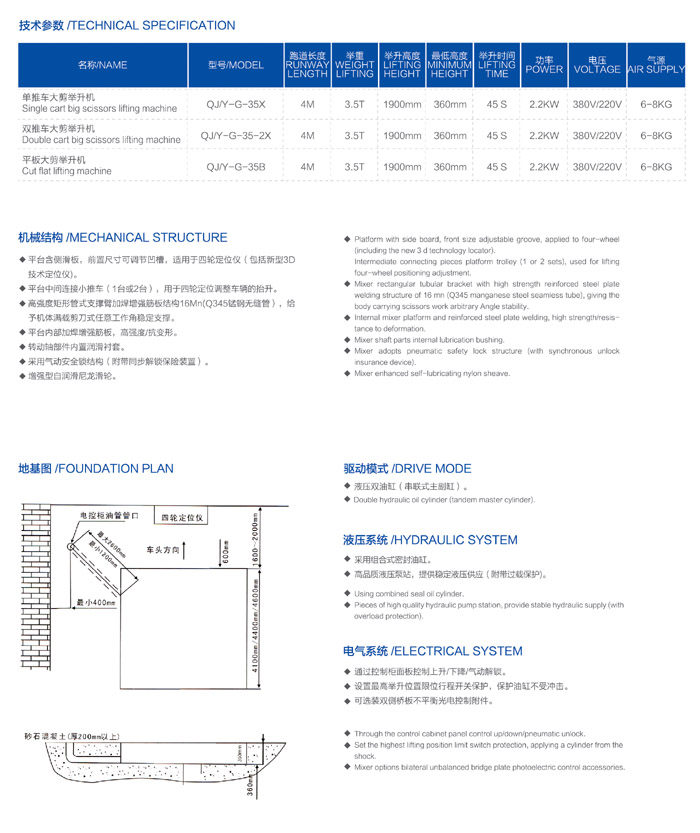

Features:
mechanical structure
1.Platform with side board, front size adjustable groove, applied to four-wheel (including the new 3 d technology locator).
Intermediate connecting pieces platform trolley (1 or 2 sets), used for lifting four-wheel positoning adjustment.
2.Mixer rectangular tubular bracket with high strength reinforced steel plate welding structure of 16 mn (Q345 manganese steel steel seamless tube),giving the body carrying scissors work arbitrary Angle stability.
3.Internal mixer platform and reinforced steel plate welding, high strength/resistance to deformation.
4.Mixer shaft parts internal lubrication bushing.
5.Mixer adopts pneumatic safety lock structure (with synchronous unlock insurance device).
6.Mixer enhanced self-lubricating nylon sheave.
hydraulic system
1.Using combined seal oil cylinder.
2、Pieces of high quality hydraulic pump station, provide stable hydraulic supply (with overload protection).
Drive mode
1.Double hydraulic oil cylinder (tandem master cylinder)
electrical sysem
1.Through the control cabinet panel control up/down/pneumatic unlock.
2.Set the highest lifting position limit switch protection, applying a cylinder from the shock.
3.mixer options bilateral unbalanced bridge plate photoelectric control accessories.
