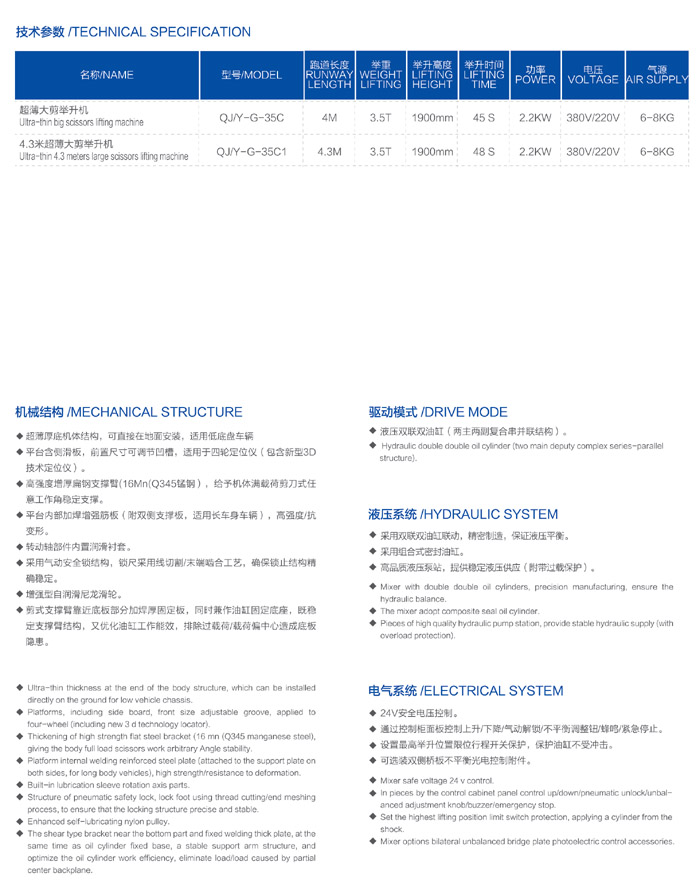

Features:
mechanical structure
1.Ultra-thin thickness at the end of the body structure, which can be installed directly on the ground for low vehicle chassis.
2.Platforms, including side board, front size adjustable groove, applied to four-wheel (including new 3 d locator).
3.Thickening of high strength flat steel bracket (16 mm Q345 manganese steel),giving the body full load scissors work arbitrary Angle stability.
4.Platform internal welding reinforced steel plate (attached to the support plate on both sides, for long body vehicles), high strength/resistance to deformation.
5.Built-in lubrication sleeve rotation axis parts.

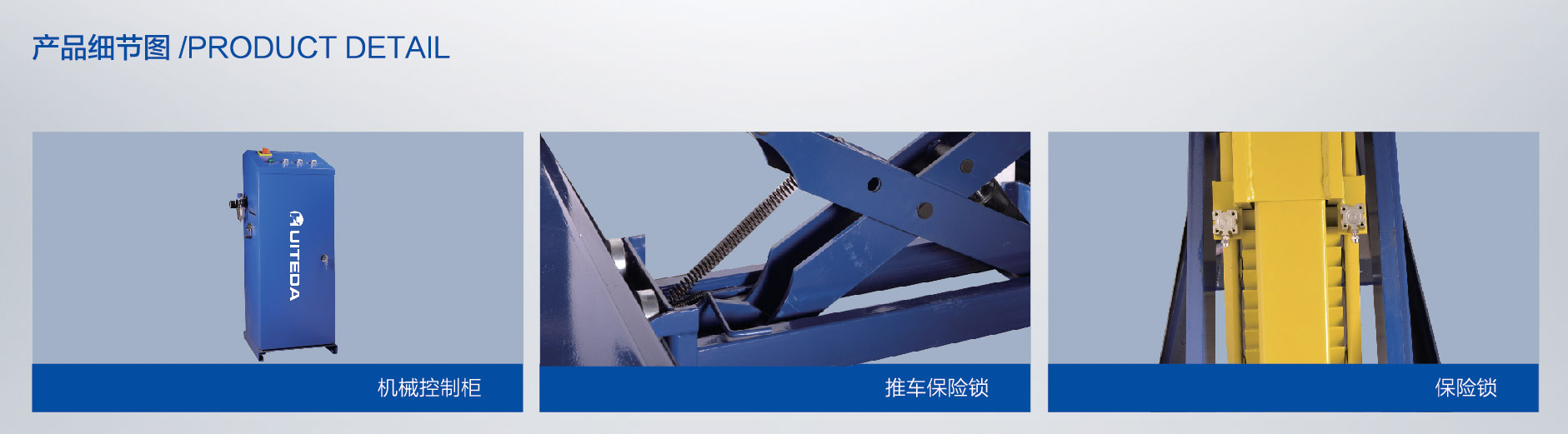

6.Structure of pneumatic safety lock, lock foot using thread cutting/end meshing process, to ensure that the locking structure precise and stable.
7.Enhanced self-lubricating nylon pulley.
8.The shear type bracket near the bottom part and fixed welding thick plate, at the same time as oil cylinder fixed base, a stable support arm structure, and optimize the oil cylinder work efficiency, eliminate load/load caused by partial center backplane.
hydraulic system
1.Mixer with double double cylinders, precision manufacturing, ensure the hydraulic balance.
2.The mixer adopt composite seal oil cylinder.
3.Pieces of high quality hydraulic pump station, provide stable hydraulic supply (with overload protection).
Drive mode
1.Hydraulic double double oil cylinder (two main deputy comples series-parallel structure).
electrical sysem
1.Mixer safe voltage 24 v control.
2.in pieces by the control cabinet panel control up/down/pneumatic unlock/unbalanced adjustment knob/buzzer/emergency stop.
3.Set the highest lifting position limit switch protection, applying a cylinder from the shock.
4.Mixer options bilateral unbalanced bridge plate photoelectric control accessories.
